Bar charts: so popular, so abused

Exploring some ways to make better use of bar charts in data viz

👋 Hey folks, welcome to Doodling Data! I’m Martina, I doodle little data visualisations by hand and I talk about them. This is the first issue in a new section of the publication where I’ll discuss best practices and methods of data visualisation in general - it’s a journey where there is much to learn, and I am learning along the way, so please enjoy the ride with me!

---

Bar charts are a very popular way of displaying data, and I’d argue they’re actually too popular - there seems to be a tendency to overuse them, sometimes in lieu of more appropriate ways to represent data. Even in academic circles, some complain that the over-use of bar charts to represent scientific results hides finer-grained information such as the probability distributions underlying the data. In the references below I’m listing a couple of scientific papers that discuss this issue.

Drawing good bar charts

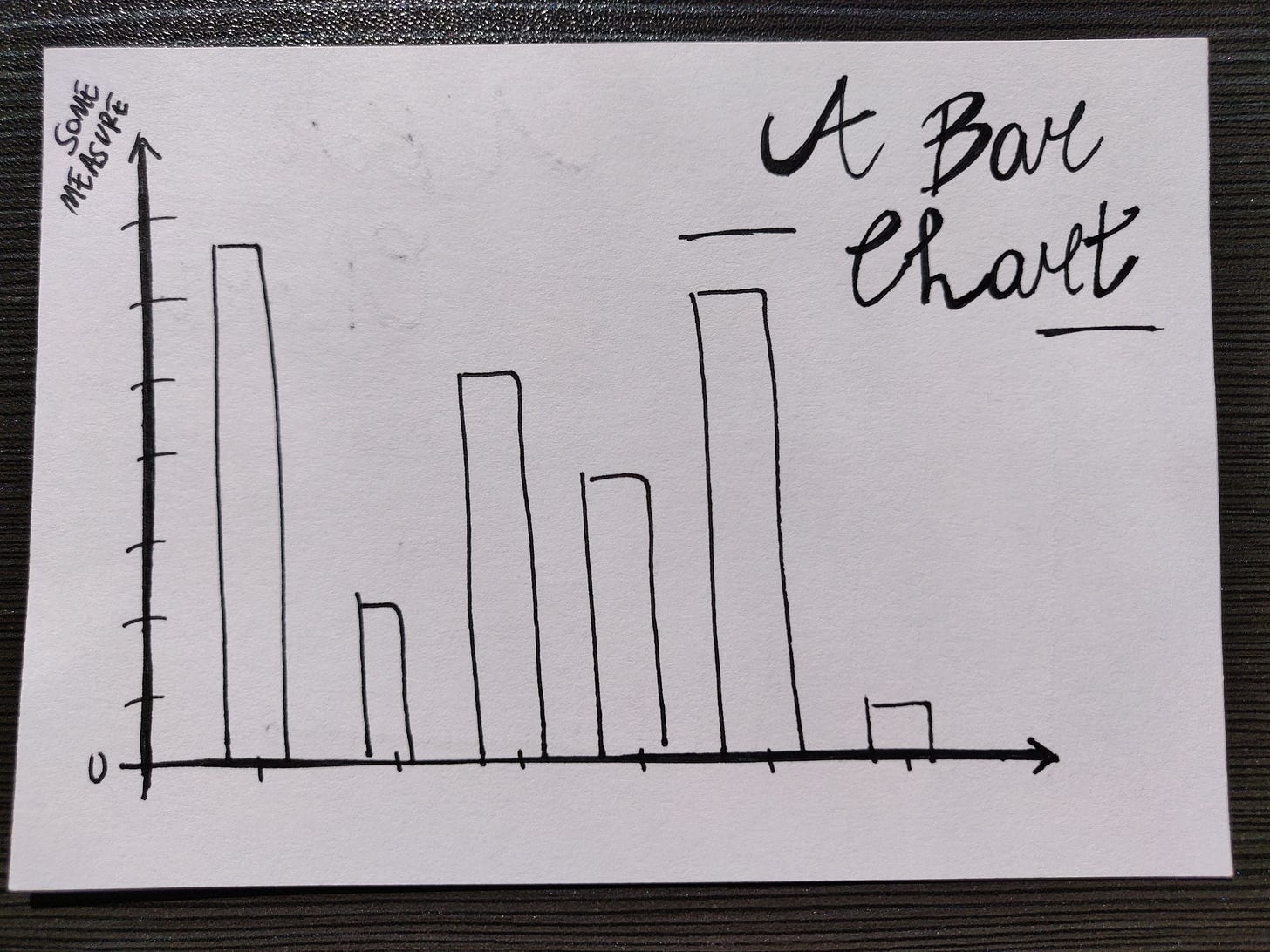

A backbone bar chart, displaying some measure.

In a bar chart, some measure (this is the data) is expressed on the y-axis and the representation is in the form of “bars”. The chart is meant to show how some measure changes with what is on the x-axis. The x-axis has to host a categorical variable, a category, essentially: examples could be the country (e.g. you’re displaying the median income by country), an age range (e.g. you’re showing the average height of pupils in a school, per each age range), a shape (e.g. you count and display cookies by their shape) …

Start the x-axis from zero

Note: it is good practice to start the y-axis from 0. This is because having a starting value different than 0 may make differences between bars appear larger than they actually are. This guide on Chartio explains this clearly.

Note that bar charts that don’t start at 0 have also been used for deceiving purposes in politics and (bad) journalism. A masterpiece case of this is this one from Fox News, where they showed two different bars on the same chart but one was starting from 0 and the other from a higher value, as an attempt to disparage the Affordable Care Act from the Obama administration.

About a temporal variable on the x-axis

Can you also use a time variable on the x-axis? Yes, provided it is categorised, like this:

A backbone bar chart, displaying how some measure changes with the month.

We have shown some measure by month, not by the general time variable (which is continuous): an example could be the millimetres of rain by month of the year. It is just not really possible to display data that changes as a function of a continuous variable by means of a bar chart; not in a good way, at least. For those kinds of jobs line charts are your friends: they allow you to show trends clearly and make the eye “interpolate” values in between points. A good discussion over the use of bar charts for trends is in this post (also in the references).

About colour

Now, let’s add some colour, shall we?

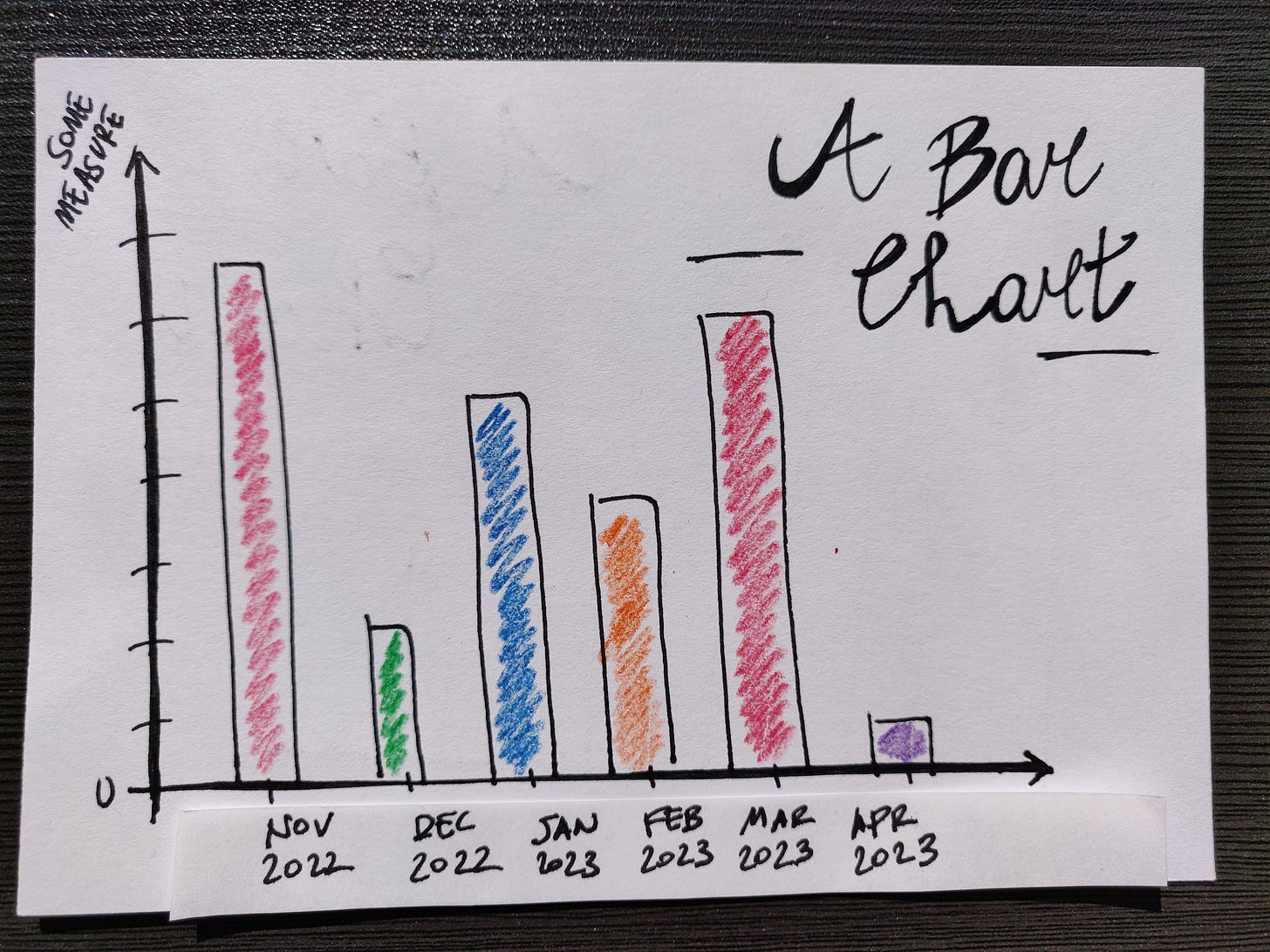

The same simple bar chart as above, but with coloured bars. Bad idea.

Well, that wasn’t such a great idea, because colour means nothing in the display and is actually pretty confusing. The eye is naturally drawn to look for some kind of legend for the colour-coding, which doesn’t exist. Generally, bar charts should not make use of different colours for the bars. For regular bar charts, it’s nearly always better to choose one hue and stick with it. Colour is of course useful in the case of stacked bar charts, where you need to distinguish two pieces of information.

A simple bar chart with the same colour for all bars and data sorted by decreasing value.

One other thing I’ve done in the above has been sorting the data by decreasing value: sorting (by decreasing or increasing value) can be a powerful thing to guide the eye to quickly grasp the whole range spanned by values.

The below is a recent data story I wrote where the viz chosen was a bar chart.

Do we know our cooking fats and oils?

---

Now that’s all for now folks! Please tune in for more on this series about practices and methods of data visualisation 🎨. And if you have any feedback please leave a comment below (you can respond to the email too) - I also welcome any ideas you would like to see discussed.

---

References

• A complete guide to bar charts, on Chartio

• A Kiebel, Displaying time-series data: stacked bars, area charts or lines …you decide!, VizWiz

• Kick the Bar Chart Habit, Nature Methods, 11 (113), 2014

• T L Weissgerber et al., Beyond Bar and Line Graphs: Time for a New Data Presentation Paradigm, PLOS Biology 13(4), 2015
